Beszel

Beszel is a lightweight server monitoring platform that includes Docker statistics, historical data, and alert functions. It uses PocketBase under the hood making it easy to add Tinyauth as an OpenID connect provider.

Requirements

• A running instance of Beszel
• A Tinyauth instance

Caution

You will need to run Tinyauth with HTTPS to use it as an OpenID Connect provider.

Tinyauth Configuration

To begin with, we need to generate a client ID and secret in Tinyauth for Beszel. This can be done by running the following command:

Docker

docker run -i -t --rm ghcr.io/steveiliop56/tinyauth:v5 oidc create beszel

Binary

./tinyauth oidc create beszel

Browser

Client Name

Create OIDC Client

From the output, make sure to note down the client ID and secret as we will need them later for the Beszel configuration.

Now, we can pass our configuration to Tinyauth using environment variables:

TINYAUTH_OIDC_PRIVATEKEYPATH=/path/to/private/key.pem
TINYAUTH_OIDC_PUBLICKEYPATH=/path/to/public/key.pem
TINYAUTH_OIDC_CLIENTS_BESZEL_CLIENTID=client-id
TINYAUTH_OIDC_CLIENTS_BESZEL_CLIENTSECRET=ta-client-secret
TINYAUTH_OIDC_CLIENTS_BESZEL_TRUSTEDREDIRECTURIS=https://your-beszel-instance.com/api/oauth2-redirect
TINYAUTH_OIDC_CLIENTS_BESZEL_NAME=Beszel

Restart your Tinyauth instance to apply the new configuration.

Beszel Configuration

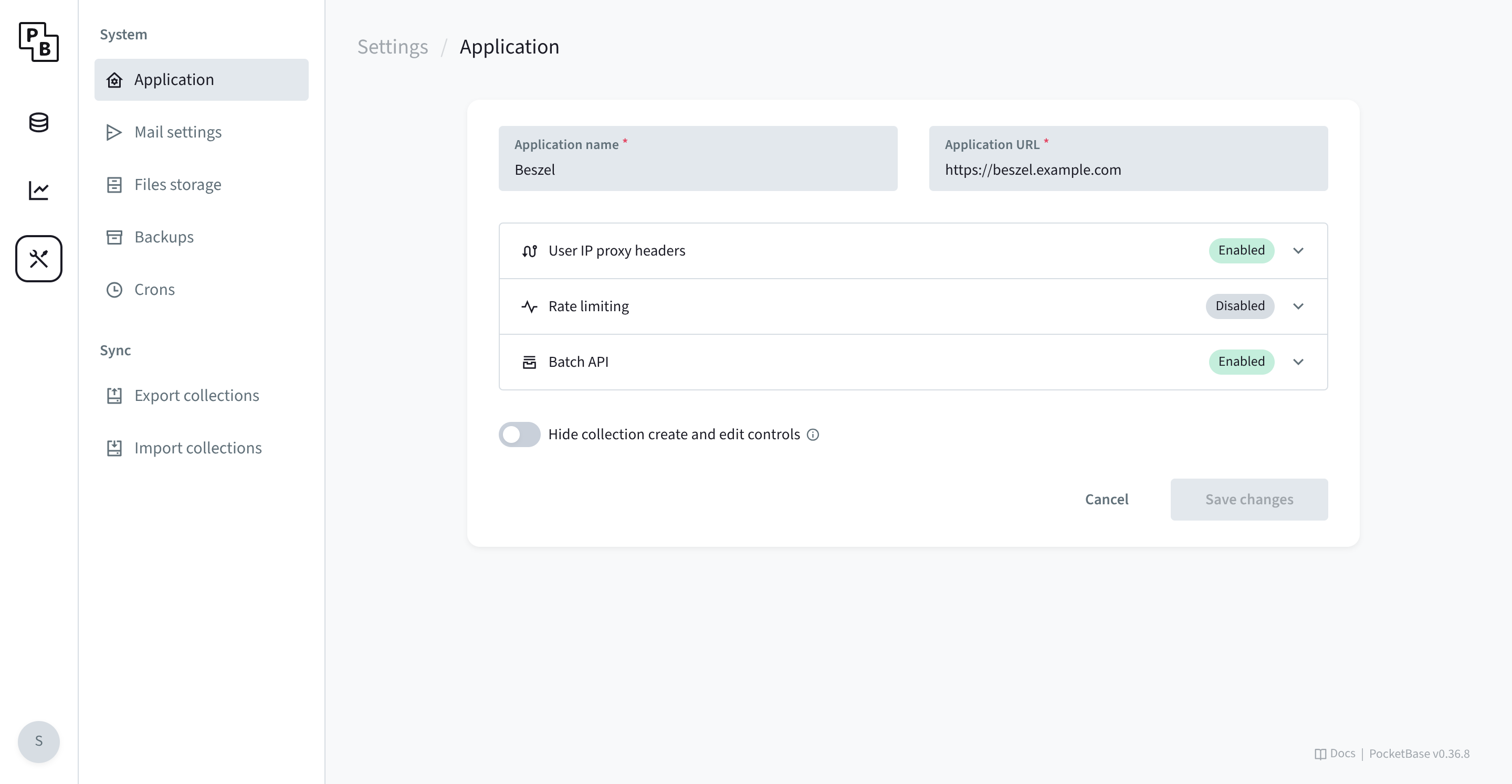

Next, we need to add the OAuth provider to Beszel. First, toggle the Hide collection create and edit controls setting under https://your-beszel-instance.com/_/#/settings (you can log in to PocketBase with your Beszel credentials).

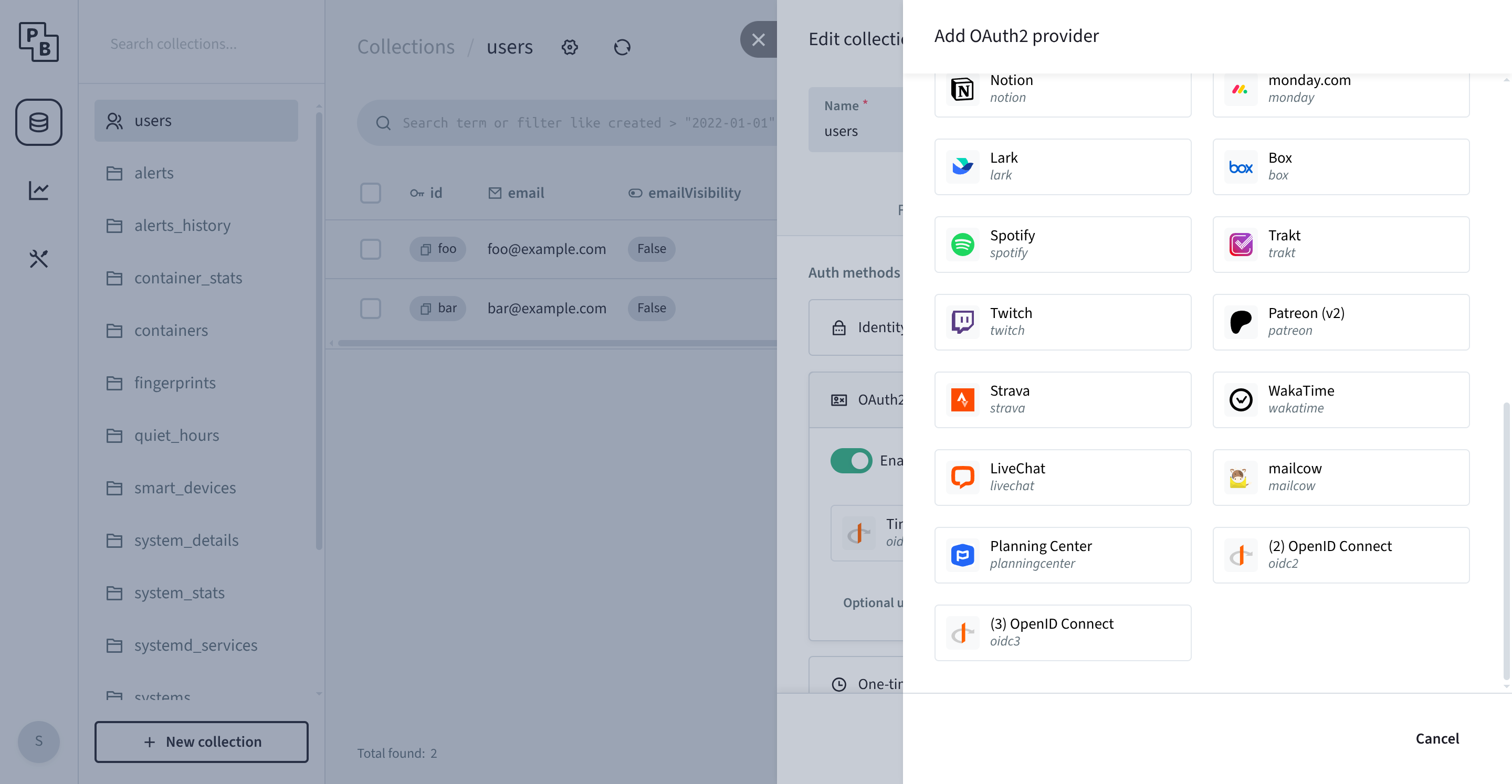

Then, go to the Collections tab and click on the users collection. In the users collection, click the little gear icon, then Options, OAuth2 (make sure it’s enabled) and Add provider. In the provider selection, select OpenID Connect (1, 2, 3 doesn’t matter).

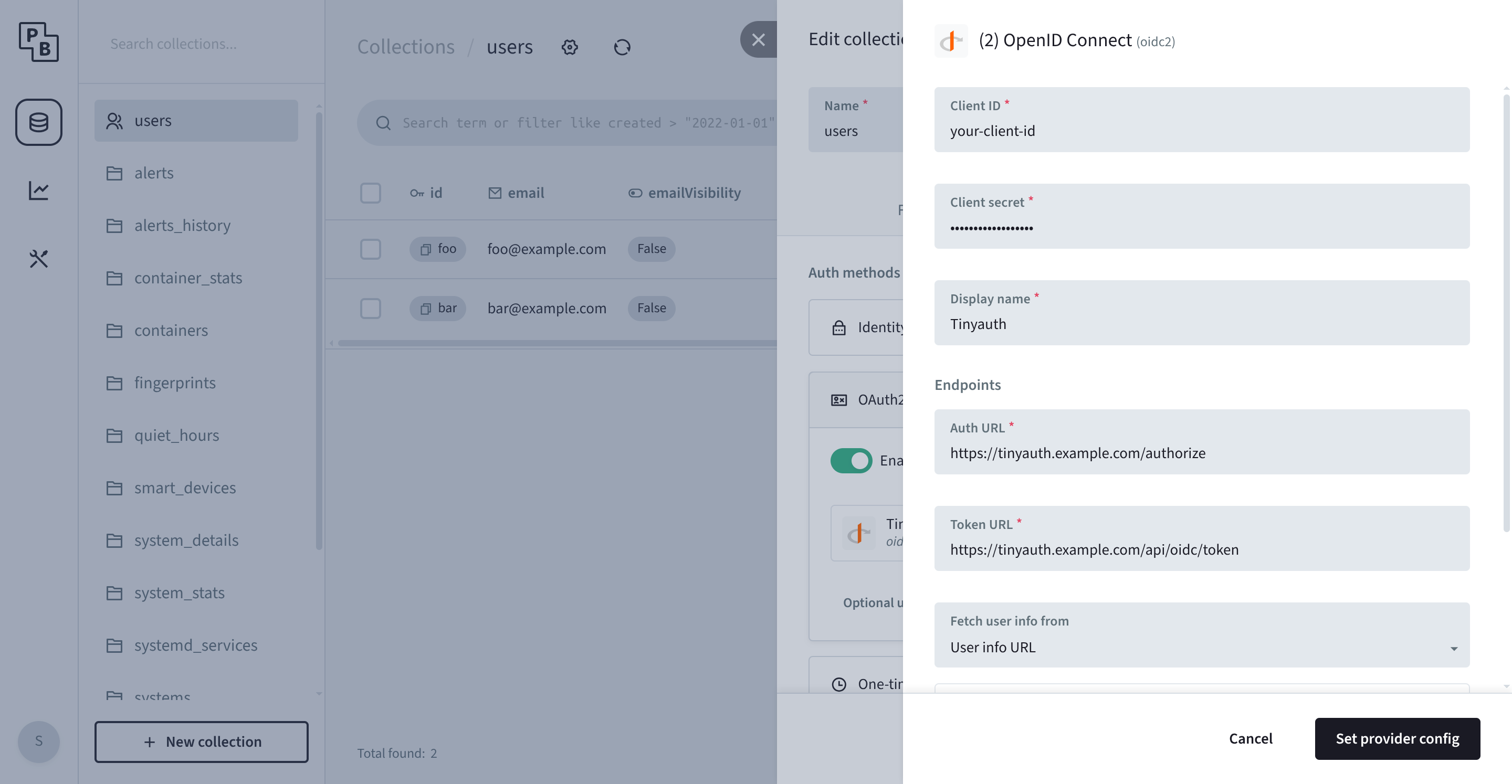

In the new window, fill in the following values.

Name	Value
Client ID	The client ID you generated from the previous step.
Client Secret	The client secret you generated from the previous step.
Display Name	Use whatever you like, for example, Tinyauth.
Auth URL	https://tinyauth.example.com/authorize
Token URL	https://tinyauth.example.com/api/oidc/token
Fetch user info from	User info URL
User info URL	https://tinyauth.example.com/api/oidc/userinfo
Support PKCE	Yes, checked.

Finally, click Set provider config.

Caution

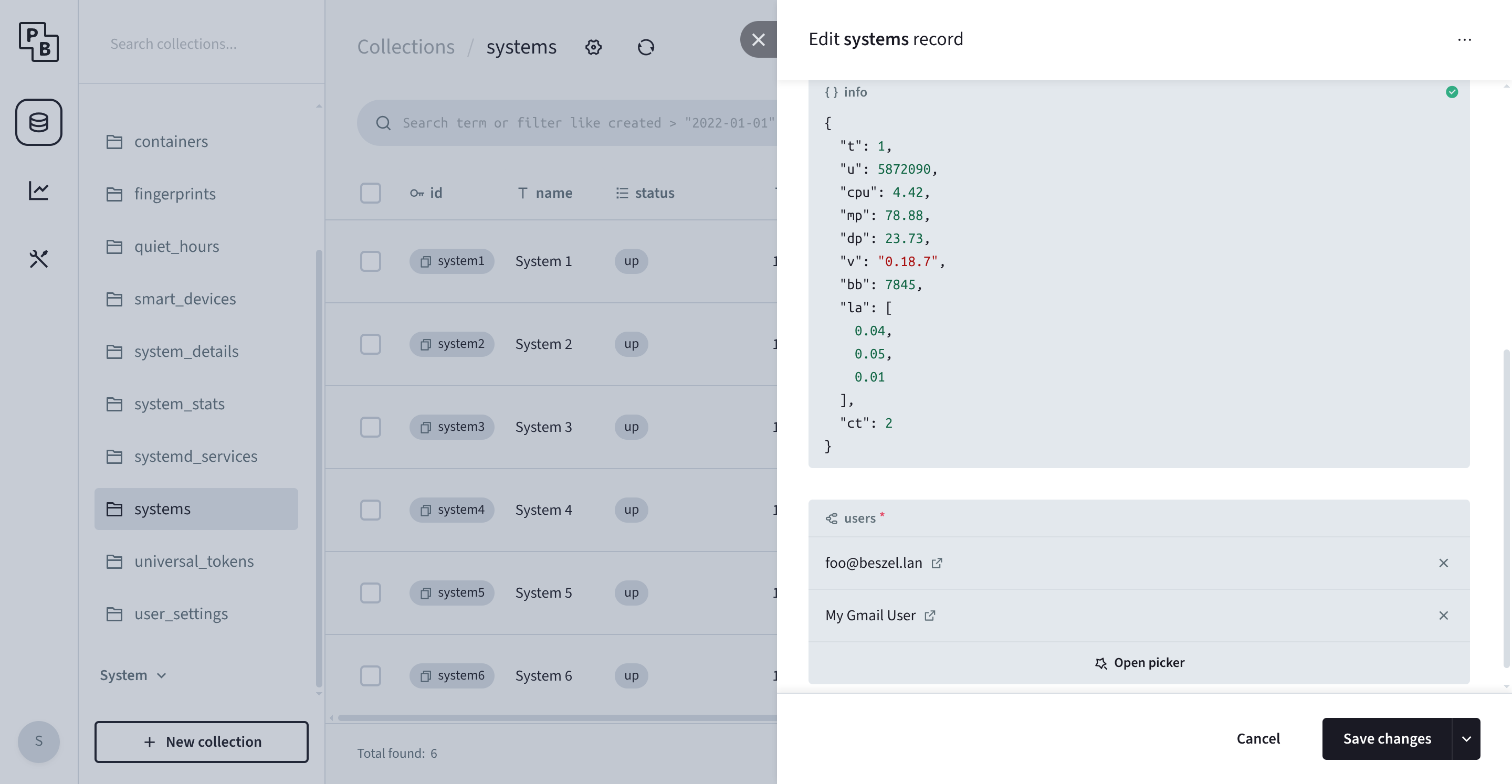

If your provider email does not match the Beszel email, you will need to set USER_CREATION=true in the Beszel docker-compose so that it creates your user. After you log in with your provider, you will need to go to the systems collection and for each system, assign your new user account.

Try it out

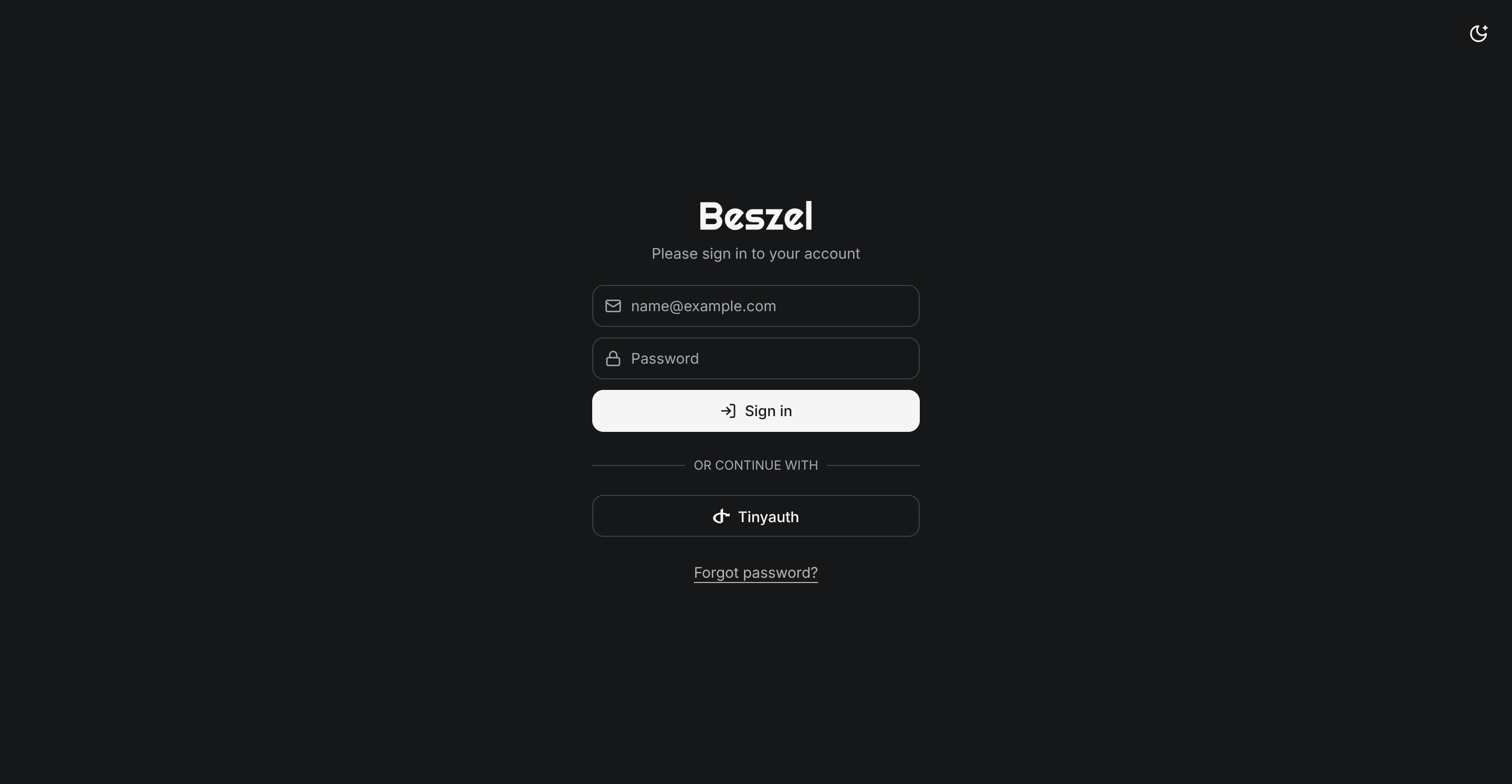

After configuring the PocketBase backend of Beszel, you should see a new Tinyauth option in the login screen.

Login and enjoy!

Note

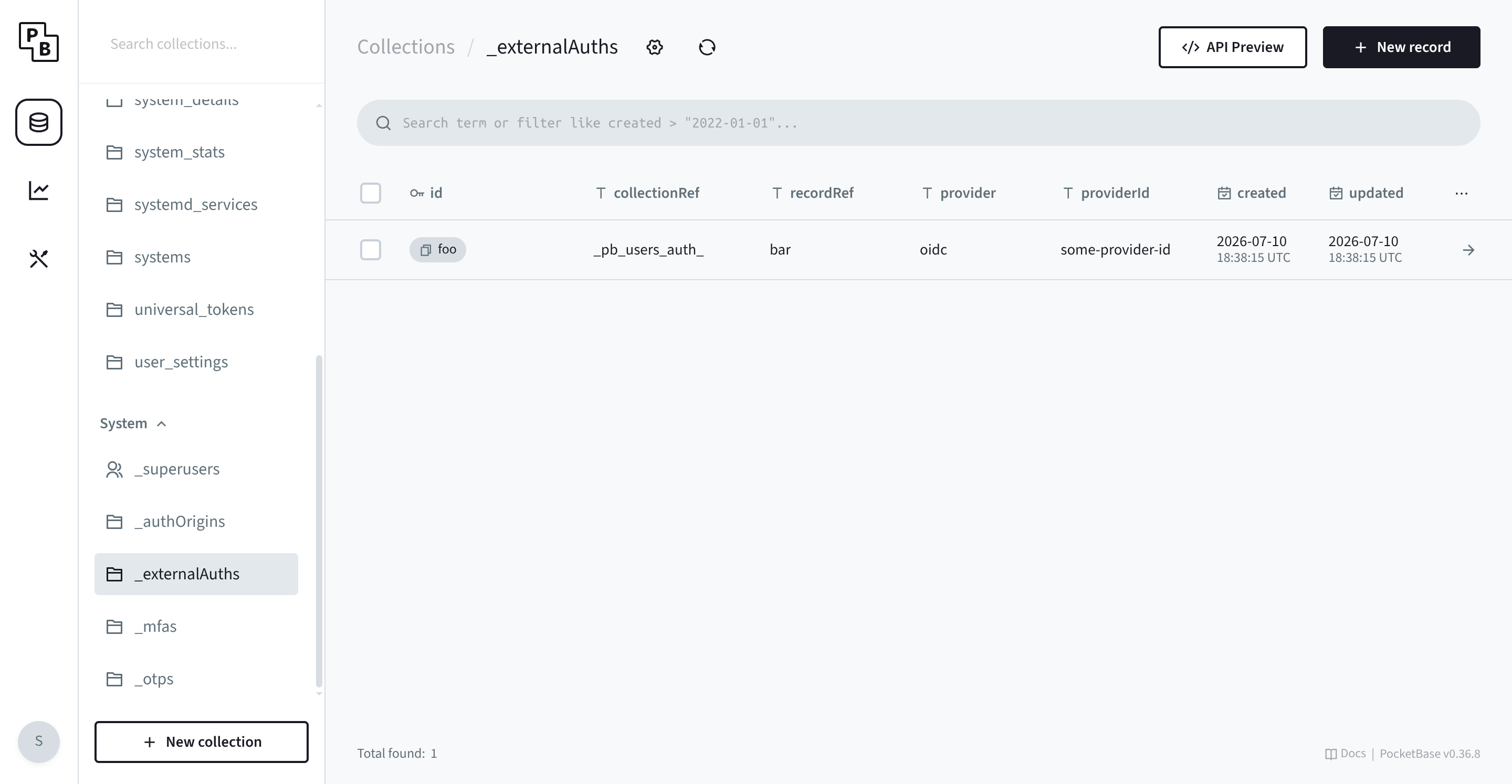

In case you are using multiple email addresses to log in to Tinyauth and thus Beszel, you may not be able to log in with your second email address. This is because PocketBase doesn’t support multiple email addresses from one provider. If this issue occurs, you will need to go to the PocketBase admin and in the Collections tab, under System, delete everything from the _externalAuths collection (assuming you only have Tinyauth as an OpenID Connect provider), then try to log in again.
