Tailscale Authentication

Tinyauth has support for detecting your Tailscale connection and automatically logging you in with your Tailscale identity. This is made possible using the Tailscale API.

Requirements

• A Tailscale account
• A Tinyauth instance

You will need your proxy to correctly forward the client IP to Tinyauth for the Tailscale detection to work. This differs from proxy to proxy, but usually you will need your proxy container to run with network_mode: host in Docker.

K3S

In case you are using K3S (and possibly other Kubernetes deployments that use Traefik+MetalLB) you can use the following Helm chart config for Traefik to forward the correct client IP to your applications (including Tinyauth):

apiVersion: helm.cattle.io/v1
kind: HelmChartConfig
metadata:
  name: traefik-config
  namespace: kube-system
spec:
  valuesContent: |-
    service:
      spec:
        externalTrafficPolicy: Local

    entryPoints:
      web:
        address: ':80'
        forwardedHeaders:
          trustedIPs:
            - 10.42.0.0/24
      websecure:
        address: ':443'
        forwardedHeaders:
          trustedIPs:
            - 10.42.0.0/24

You can check if Tinyauth is receiving the correct client IP by visiting it and checking the client_ip section in the info logs.

Get the Tailscale API token

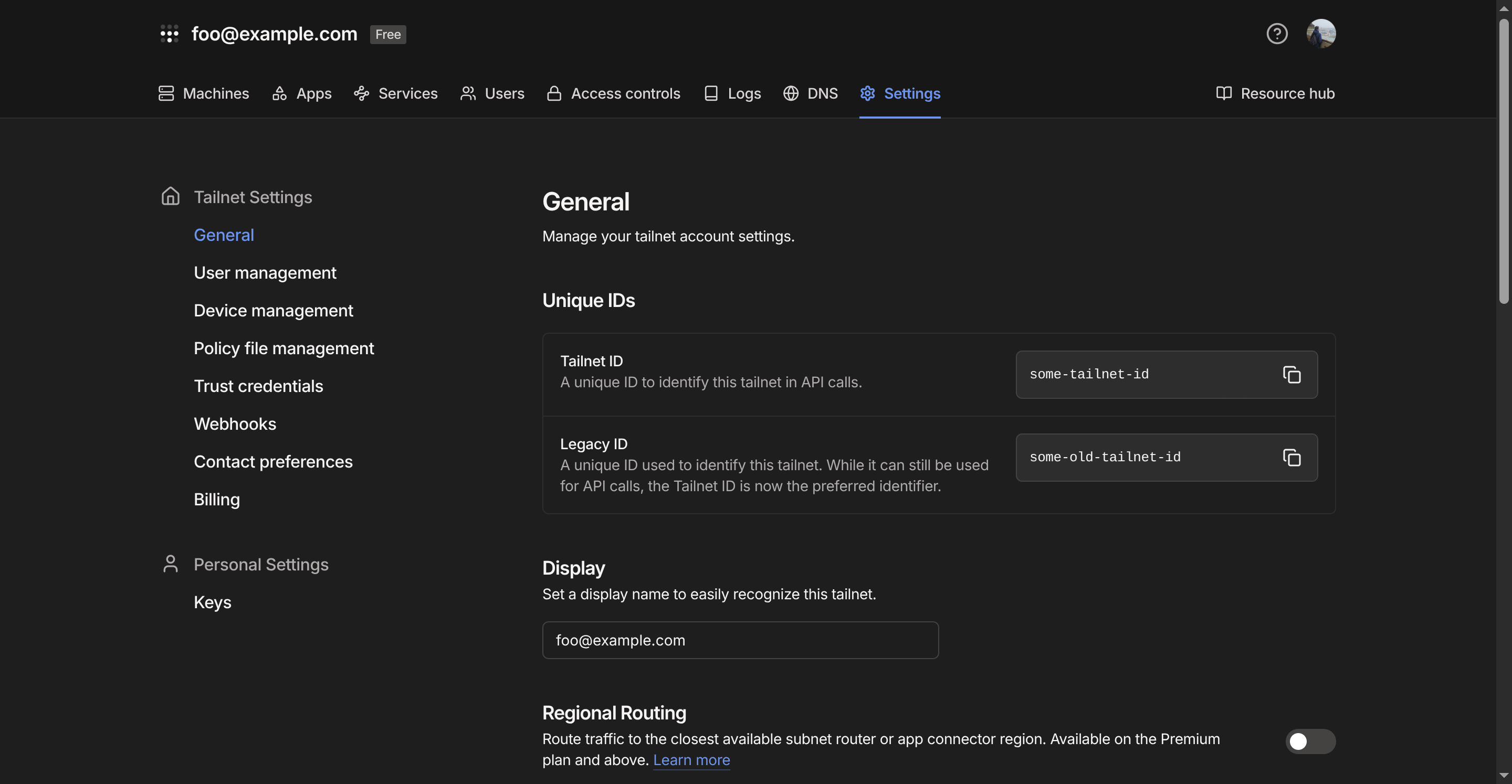

Before configuring Tinyauth, you need to obtain your Tailnet ID and an API token from Tailscale. This can be done by visiting the Tailscale admin console. The Tailnet ID is the first thing you see in the page.

Note

While you can use the Legacy Tailnet ID, it is recommended to use the new random one.

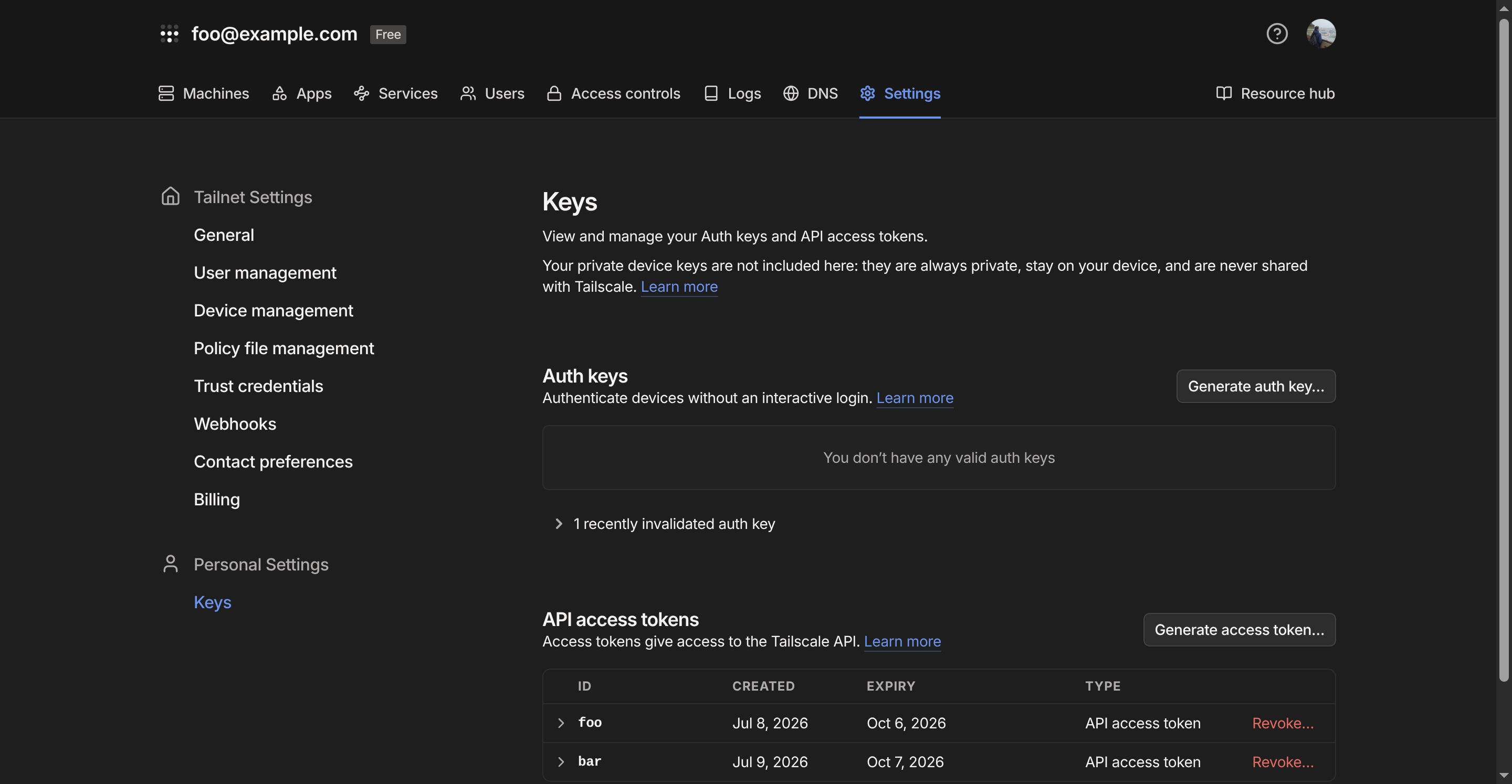

Then, you can generate an API token in the keys page.

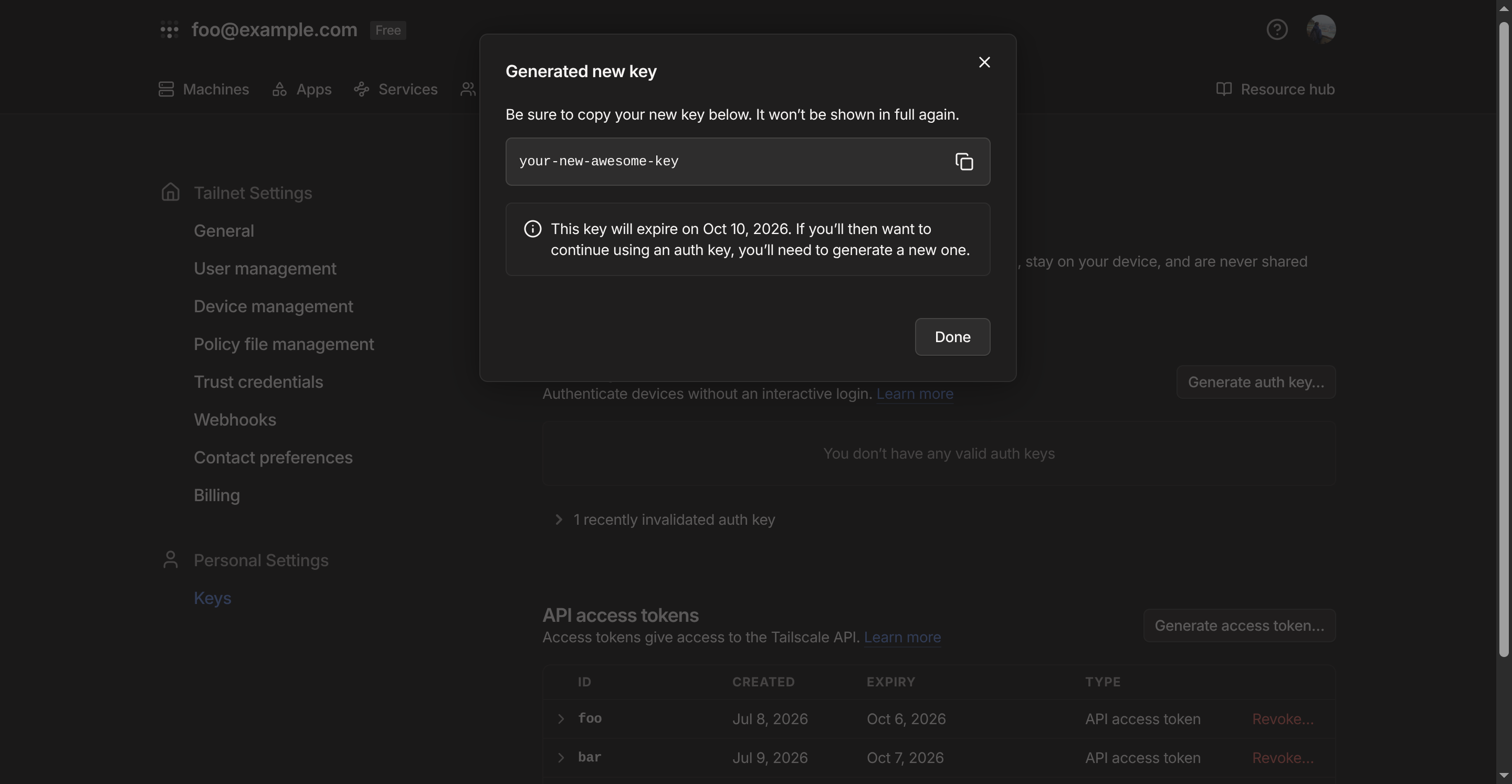

There click the Generate access token button, give it a name and click Generate access token again. You should then be greeted by the following page.

Make sure to note down your Tailnet ID and the new API token as we will need them in the next part.

Configure Tinyauth

With your Tailnet ID and API token you can configure Tinyauth in the following way:

services:
  tinyauth:
    environment:
      - TINYAUTH_TAILSCALE_ENABLED=true
      - TINYAUTH_TAILSCALE_APITOKEN=your-api-token # TINYAUTH_TAILSCALE_APITOKENFILE also supported
      - TINYAUTH_TAILSCALE_TAILNET=your-tailnet-id

Tinyauth by default caches the user and device list for 5 minutes, you can reduce the cache duration with TINYAUTH_TAILSCALE_CACHEDURATION (in seconds).

Note

Tinyauth does not support serving on a Tailscale domain (like tinyauth.funny-name.ts.net). This is because we would need the tsnet library to serve on Tailscale which adds a lot of unnecessary weight to the binary (+20MB). Features requiring the tsnet library will not be added.

Make sure to restart Tinyauth after updating the configuration.

Usage

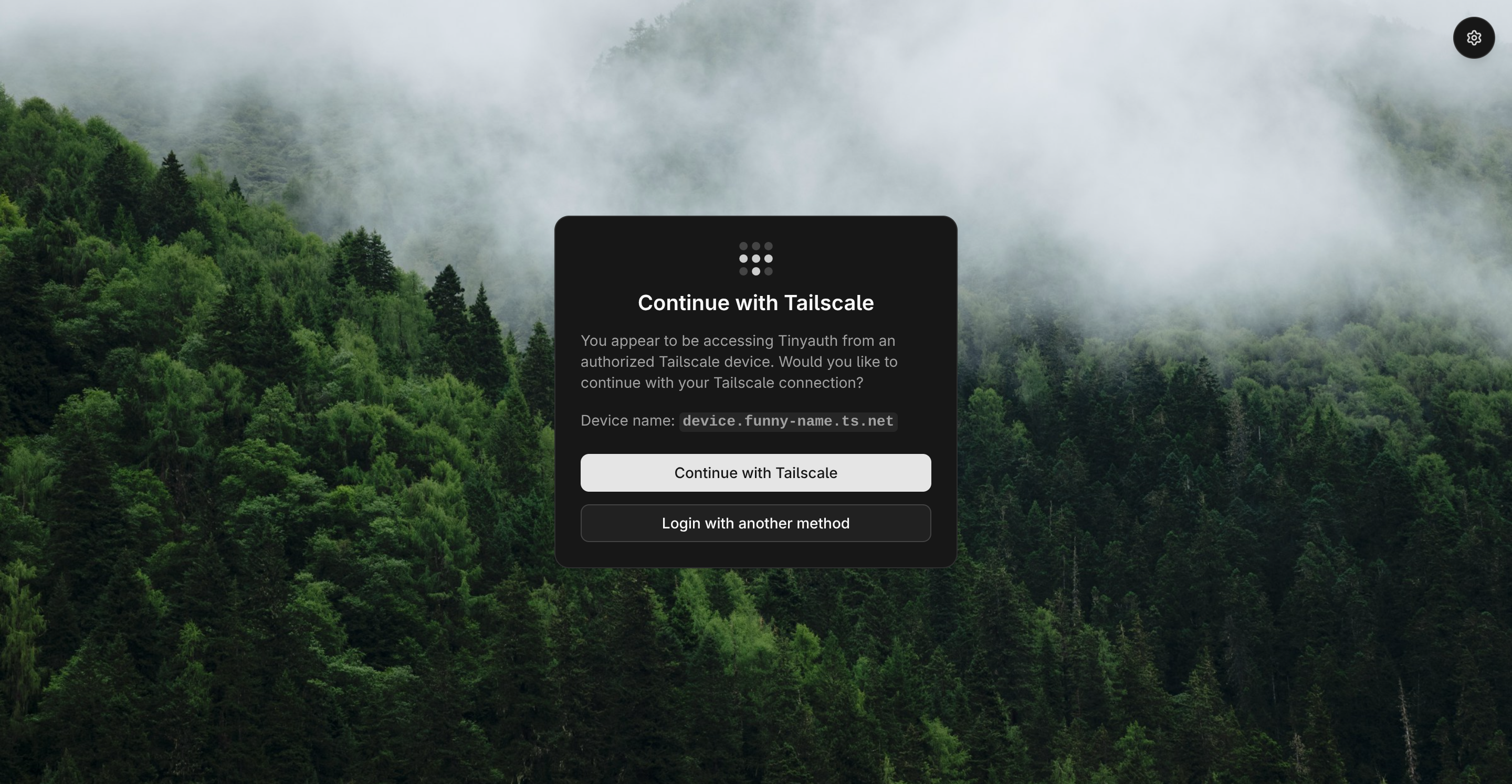

After restarting and assuming Tinyauth can get your client IP, you should see the following screen when visiting Tinyauth to login:

After clicking Continue with Tailscale, authentication should proceed as normal.
