Setting up Tinyauth with Zitadel

Contributor: @WilliamB78.

Tinyauth has built-in support for any generic OAuth provider, and in this guide we will use Zitadel to authenticate our users. Let's get started!

Requirements

For this guide, you will need the following:

  • A domain name (gTLD required)
  • A Zitadel instance (cloud or self-hosted).

Create the Zitadel OAuth app

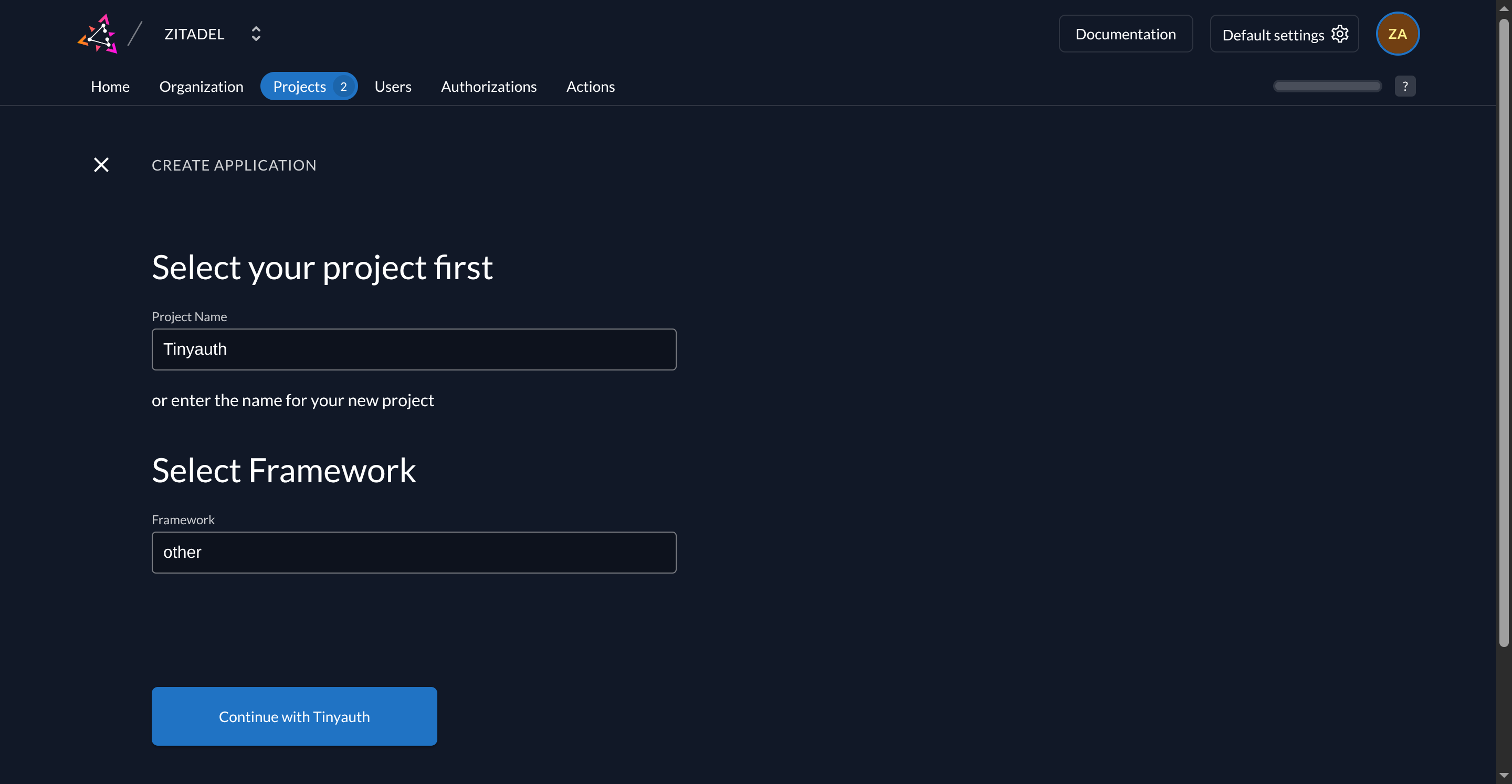

To begin with, you need to create an app in Zitadel. This can be done by visiting the Zitadel Console. You need to create a new project, for the app just use Tinyauth.

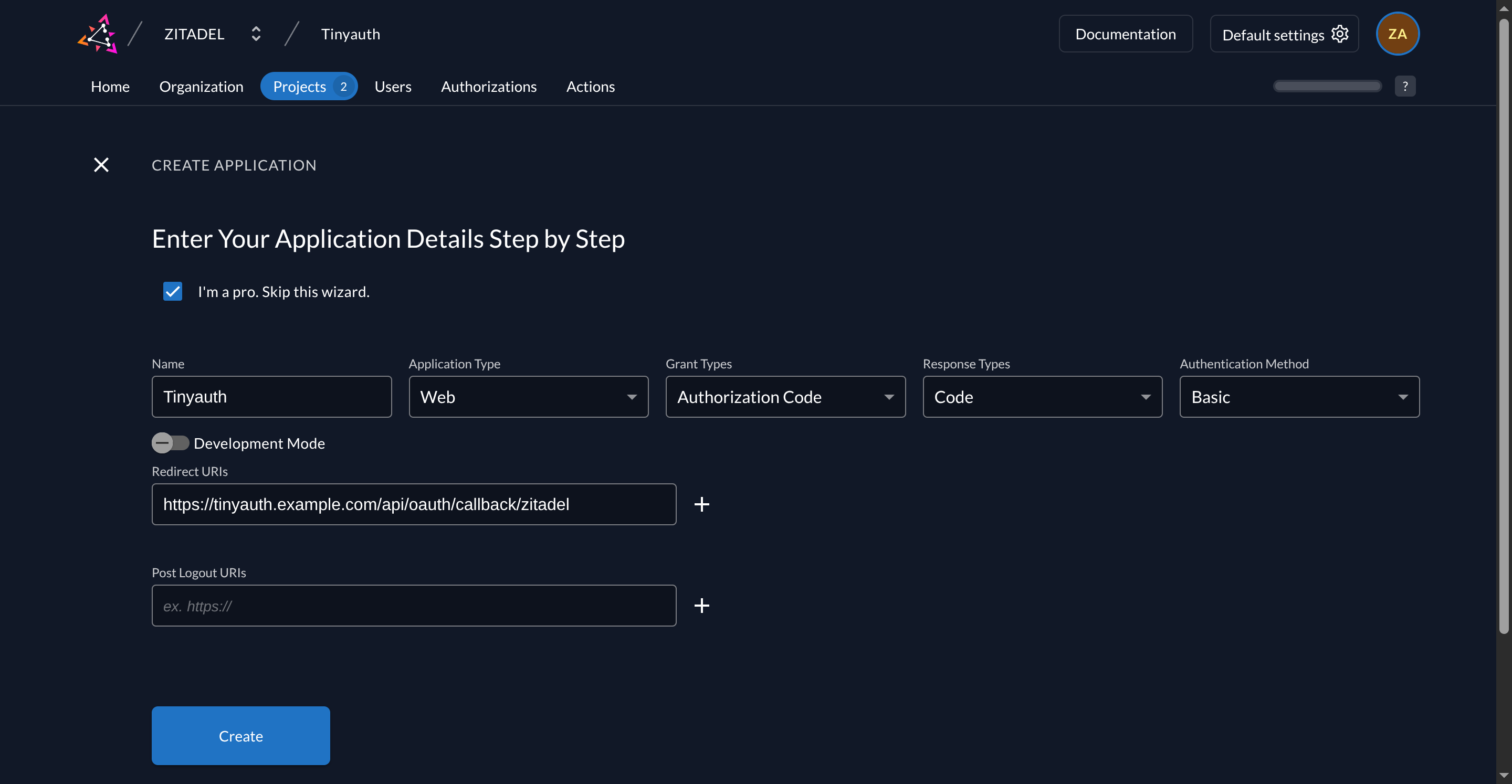

Then create a new application by clicking on the "+" blue button.

Follow the wizard and configure the app like this:

NameValue
NameTinyauth
TypeWeb
Authentication MethodCode
Redirect URIhttps://tinyauth.example.com/api/oauth/callback/generic

Finalize by clicking on the Create button, and copy the client ID and the client secret.

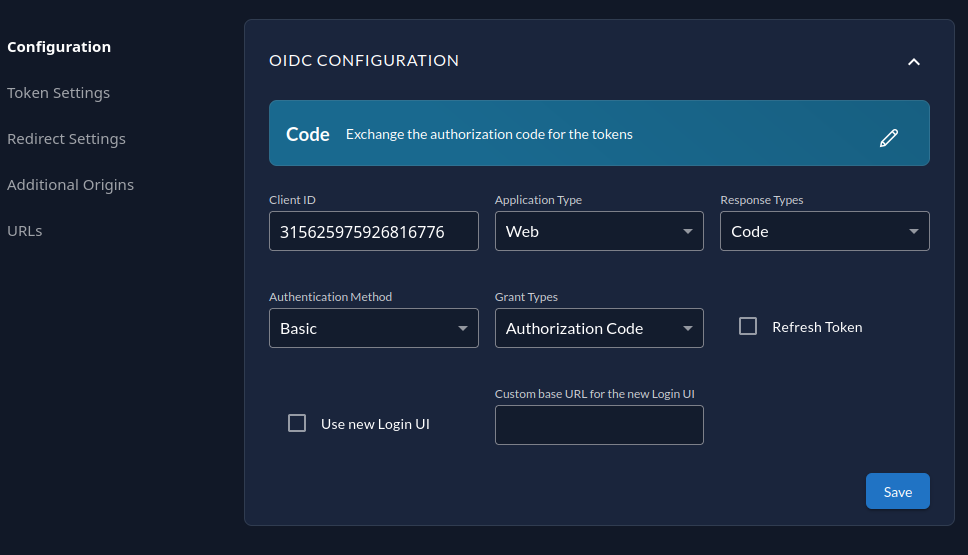

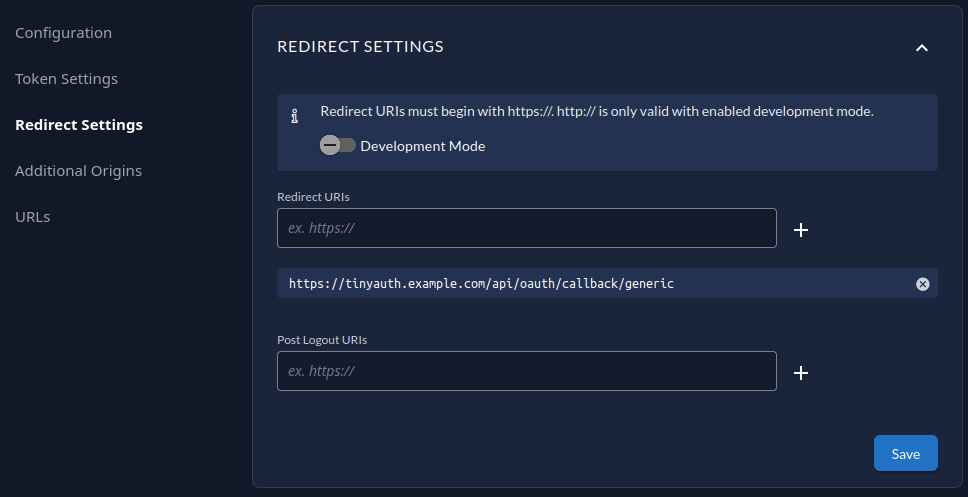

After your application gets created, you should have a screen like this:

Zitadel configuration view

Zitadel redirect view

Configure Tinyauth

Now that you have your Client ID and Secret, you can pass it to the Tinyauth docker container:

tinyauth:
container_name: tinyauth
image: ghcr.io/steveiliop56/tinyauth:v3
restart: unless-stopped
environment:
- SECRET=some-random-32-chars-string
- APP_URL=https://tinyauth.example.com
- GENERIC_SCOPES=openid profile email preferred_username groups
- GENERIC_AUTH_URL=https://zitadel.example.com/oauth/v2/authorize
- GENERIC_TOKEN_URL=https://zitadel.example.com/oauth/v2/token
- GENERIC_USER_URL=https://zitadel.example.com/oidc/v1/userinfo
- GENERIC_CLIENT_ID= # Paste from previous step
- GENERIC_CLIENT_SECRET= # Paste from previous step
- GENERIC_NAME=Zitadel
- OAUTH_AUTO_REDIRECT=generic
- DISABLE_CONTINUE=true
labels:
traefik.enable: true
traefik.http.routers.tinyauth.rule: Host(`tinyauth.example.com`)
traefik.http.middlewares.tinyauth.forwardauth.address: http://tinyauth:3000/api/auth/traefik
traefik.http.middlewares.tinyauth.forwardauth.authResponseHeaders: Remote-User, Remote-Email, Remote-Name, Remote-Groups
warning

OAuth doesn't mean security, with the current setup everybody with a Zitadel account can login to Tinyauth as a normal user. If you would like to limit which users can login with OAuth, you can add the OAUTH_WHITELIST environment variable and only allow your email address to login. For more information check the configuration page.

tip

Since you have OAuth enabled, you can now remove the USERS or USERS_FILE environment variables so as you can ony login with your OAuth provider.

And you are done! After you restart Tinyauth and try to login to an app, you should have an additional option to login with Zitadel.
